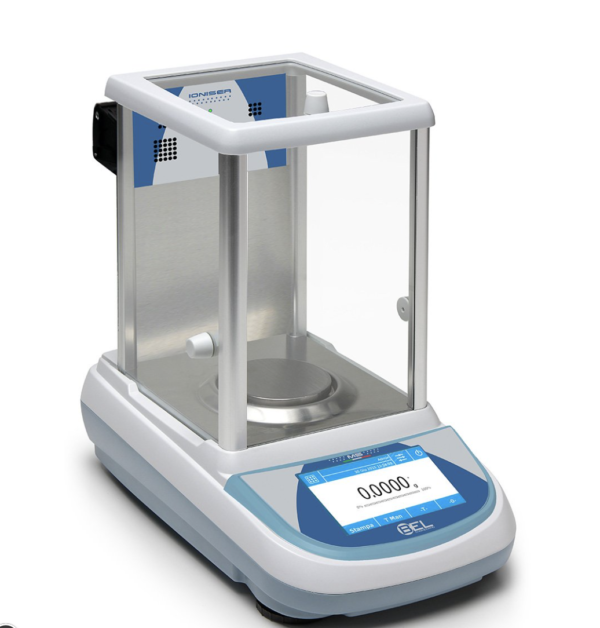

M5 analytical balances
Description
M5-HPB 414Ai-ION
M5 analytical balances are the most innovative and advanced series made by BEL Engineering. Equipped with large 5’’ color touch screen display, it gives an user-friendly access to all the balance’s advanced applications and internal databases.
The user has easy and intuitive access to all the functions thanks to the icon-driven menus. This means more efficiency, productivity and interactivity.
The -ION models are equipped with an integrated ioniser on the back of the balance with the purpose to neutralize static electricity on charged samples like plastic parts, containers or films for acquiring the most accurate results. A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case.
The many on-board functions already included, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient.

















Technical Features
| Capacity | 410g |
|---|---|
| Resolution | 0,1mg |
| Calibration | Automatic internal |
| Pan size | Ø 80 mm |
| Linearity | ± 0,0005g |
| Response time (sec.) | ≤4 |
| Repeatibility | 0,1mg if weight ≤ 220g / 0,3mg from 220g to 310g / 0,35mg from 310g to 410g |
| Verification | N/A |
|---|---|
| Minimum Load | 10 mg |
| Display | TOUCH-SCREEN 5” |
| Tare Range (Subtractive) | 410g |
| Span Drift In 10… 30°c | ± 2 ppm/°C |
| Interface | RS232 |
| Database Capacity | 3000 |
| Windshield Type And Dimensions | 3 sliding windows / 162x171x225 mm |
| Working Temperature | 5 – 35°C (15-30°C for verified models) |
| Balance Power Supply | 110-230Vac. 50/60Hz, output 24V 500mA 13VA |
| Power Consumption (Max) | 2 Watt |
| Ioniser Power Supply | IN AC 100-240V 50/60Hz, OUT DC 12V, 500mA |
| Calibrates With (Class) | 200 g (E1) |
| Balance Dimensions (W X L X H) | 215 x 345 x 345 mm |
| Net Weight / Gross Weight, Approx. | 7 / 9,6 Kg |
| Package Size (W X L X H) | 390 x 520 x 630 mm |
