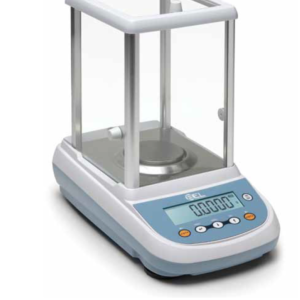

Analytical Balance Mod. M5-M254Ai
د.إ 8,608.79
27 people are viewing this right now
Available on backorder
Description
About the brand
Reviews (0)
Questions
Description

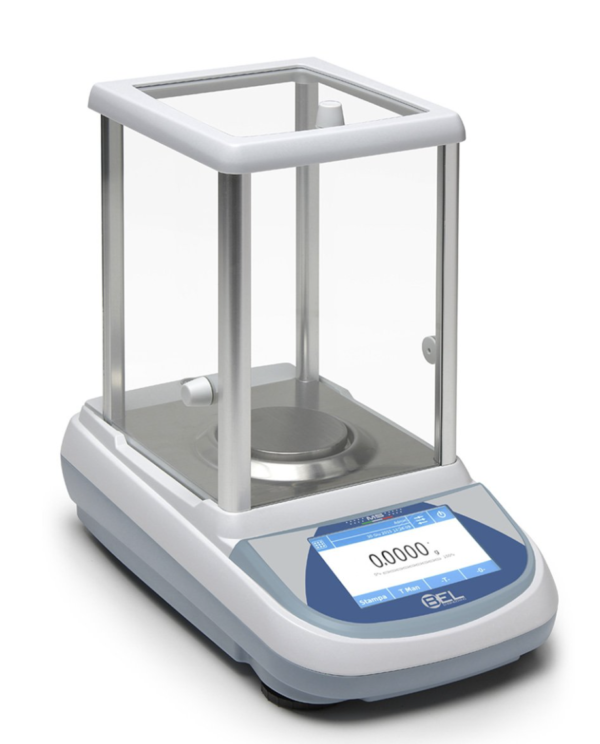

M5 analytical balances are the most innovative and advanced series made by BEL Engineering. Equipped with large 5’’ color touch screen display, it gives an user-friendly access to all the balance’s advanced applications and internal databases.
The user has easy and intuitive access to all the functions thanks to the icon-driven menus. This means more efficiency, productivity and interactivity. A double case structure protects the heart of the balance: an aluminum inner case and a composite plastic external case.
The many on-board functions already included, up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient.
Overview
- Electromagnetic force restoration weighing system
- Highly integrated weighing cell
- Automatic internal calibration (only “i” models)
- 5’’ Touch-screen Display 800×480
- RS232 serial interface
- Selectable Measuring units
- Internal Database
- GLP
- Multi Languages (EN-DE-FR-IT-SP-PT)
- Multi-user with password protection
- USB port for import/export database data
- Advanced piece counting function with Statistics report
- Textile function to measure fibers with Statistics report
- Advanced Density function, with density index (DI) calculation
- Formulation (Recipe)
- Check weighing
- Percentage weighing
- Weights adding
- Animal weighing
- Max load determination (Peak hold)
- Large glass draft shield with 3 sliding doors for easy access to the items being weighed
Technical Features
| Capacity | 250g |
|---|---|
| Resolution | 0,1mg |
| Calibration | Automatic internal |
| Pan size | Ø 80 mm |
| Response time (sec.) | ≤4 |
| Linearity | ± 0,0003g |
| Repeatibility | 0,1mg |
| Verification | N/A |
|---|---|
| Minimum Load | 10 mg |
| Display | TOUCH-SCREEN 5” |
| Tare Range (Subtractive) | 250g |
| Span Drift In 10… 30°c | ± 2 ppm/°C |
| Interface | RS232 |
| Database Capacity | 3000 |
| Windshield Type And Dimensions | 3 sliding windows / 162x171x225 mm |
| Working Temperature | 5 – 35°C (15-30°C for verified models) |
| Power Supply | 110-230Vac. 50/60Hz, output 24V 500mA 13VA |
| Power Consumption (Max) | 2 Watt |
| Calibrates With (Class) | 200 g (E2) |
| Balance Dimensions (W X L X H) | 215 x 345 x 345 mm |
| Net Weight / Gross Weight, Approx. | 7 / 9,6 Kg |
| Package Size (W X L X H) | 390 x 520 x 630 mm |
Bel Engineering
BEL Engineering® s.r.l. is an italian company manufacturer of Electronic precision Balances and laboratory scientific instruments, with headquarters in Monza (Milano), ITALY.
The company was born at the beginning of the Eighties, taking care from the very beginning to its own production through a constant and deep scientific and technological research. Each step of production process (mechanics, electronics, software, design) is completely followed, so ensuring a 360 degrees quality checking on each part related to the electronic balance and to other products of ours.
