Description

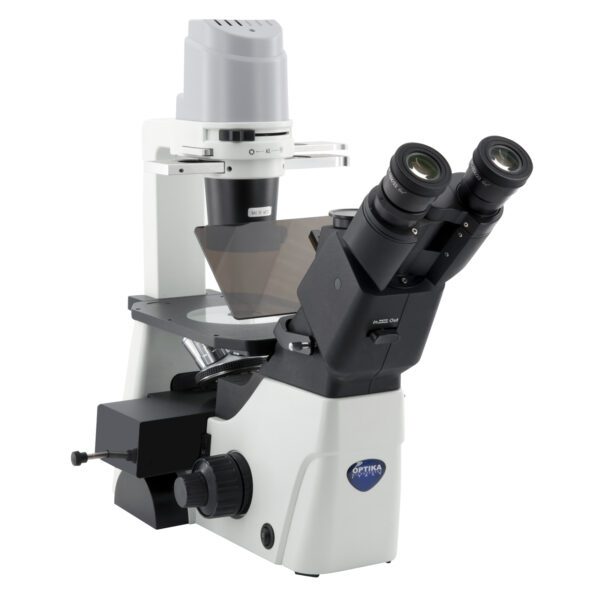

IM-300 INVERTED LED FL/PH MICROSCOPE, 400X, LWD PLAN, B & G SET

Observation mode: Brightfield, phase contrast, LED fluorescence.
Epi-illumination and filter: High-power LED with brightness control. 3-position filter holder; blue and green filtesets included.
Head: Trinocular (2-position 100/0, 0/100), 45° inclined.
Interpupillary distance: Adjustable between 50 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN PH 40x/0.65
All with anti-fungus treatment.
Specimen stage: Fixed stage, 250×160 mm, with glass and metal stage inserts. Mechanical stage as option.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm. With 4x/10x, 20x/40x phase contrast slider and brightfield.
Transmitted illumination: X-LED8 with white 8 W LED (6,300K) with brightness control. With aperture diaphragm. 100-240Vac/12Vdc external power supply

Standard filtersets

Name: Blue
LED emission (nm): 460
Excitation filter (nm): 455-495
Dichroic mirror cut-off (nm): 500
Emission filter (nm): 510LP

Name: Green
LED emission (nm): 523
Excitation filter (nm): 510-550
Dichroic mirror cut-off (nm): 570
Emission filter (nm): 575LP
