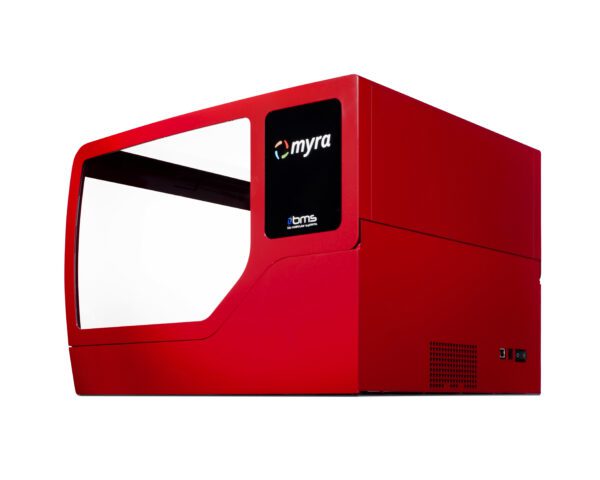

Myra Liquid Handling System
Description
Here’s Myra, the world’s first automated liquid handling system that can see.
Manufactured in our facility in Australia, the Myra liquid handling system incorporates cutting-edge algorithms, an automatic pipette and an integrated camera, ensuring precision pipetting. With Myra’s liquid handling instruments, you can save valuable time thanks to the exceptional speed, pinpoint accuracy of the automatic pipette, user-friendly software, and the fact that it requires little to no maintenance.
Myra | Specs

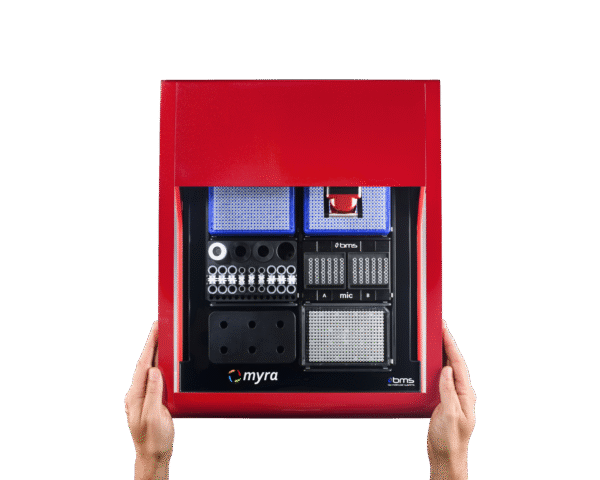

Front

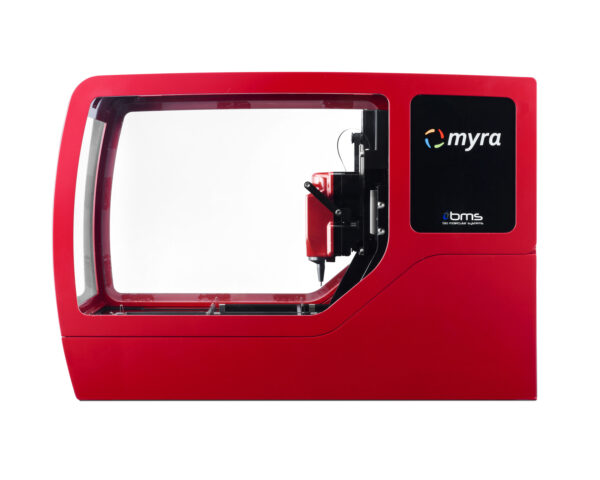

Side
Physical
| Height | 310 mm (610 mm lid open) |
| Width | 350 mm |
| Length | 460 mm |
| Weight | 10 kg |
Performance
| Position control | Closed loop, 100 μm resolution |
| Calibration | Â High precision camera |
Pipette
| Pipetting volume range | 1 – 50 μL | ||
| Liquid level detection | Pressure sensing | ||
| Tips per rack | 384 | ||
| Dispense modes | Single | ||
| Precision | 1 μL:      5% CV 5 – 50 μL:  1% CV |
||
| Accuracy | 1 μL:      < 10% 5 – 50 μL:  1% |
||
Contamination Control
| Tip disposal type | Internal enclosed waste container |
| HEPA filter | 99.98% at 0.3 μm |
| UV lamp | High intensity 70 mW 280 nm UV LED |
Communication
| Type | USB 2.0 |
| PC Requirements | Intel i5 2.4 GHz or equivalent processor, 4 GB RAM, 5 GB HD, 1366 x 768 display |
Operating Environment
| Temperature range | 18 – 30°C |
| Humidity | 20 – 80% |
Electrical
| AC Input | 100-240 VAC, 50/60 Hz 4.0 ACompatible with any countries standard plug/outlets |
